产品名称

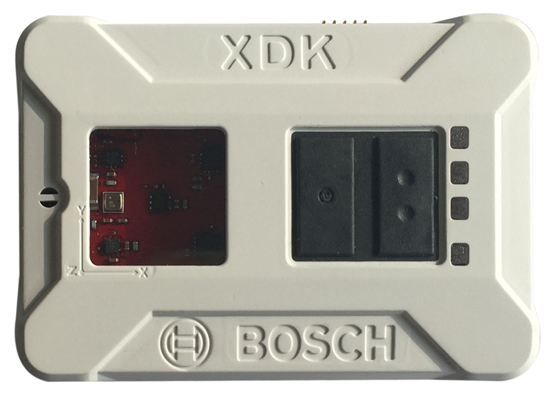

BCDS-XDK

主芯片
CPU

ARM® Cortex™ M3
32Bit Microcontroller

集成传感器
Built-in Sensors

加速度计Accelerometer (BMA280)
±2~±16g  |  2000Hz
陀螺仪  Gyroscope (BMG160)
±125〬/S ~ ±2000〬/S  |  2000Hz
磁力计  Magnetometer (BMM150)
±1300uT (X,Y –Axis); ±2500uT (X,Y –Axis)  |  300Hz
惯性测量Inertial measurement unit (BMI160)
0.045lux ~ 188000lux; 22bit  |  3200Hz
温湿度压力计Humidity/ Pressure/ Temperature/sensor (BME280)
10 ~ 90 %rH/300 ~ 1100 hPa/-20℃ ~ 60℃  |  182Hz
噪声传感器Acoustic noise sensor (AKU340)
数字光感  Digital light sensor (MAX44009)

内存
Memory

1MB Flash, 128KB RAM

外部接口
I/O Interface

电源开关Power switch
系统灯Green system LED to display the state of charging
可编程状态灯3 programmable status LEDs (red, orange, yellow)
可编程按钮2 programmable push-buttons
存储卡接口Micro SD card slot
Debug口Interface for J-Link Debug-probe
扩展接口Interface for extension board

扩展接口
Expansion

1 x XDK Gateway

供电输入
Power Supply

适配输入DC +5V
充电电流Charging Current:500 mA Maximum

环境
Conditions

操作温度Operating temperature range:  -20 - 60℃
存储温度Storage temperature range:  -20 - 60℃
操作湿度Humidity range: 10…90 %rH (non-condensing)
防护等级IP Rating: IP 30 (IEC 60529)
认证：CE, FCC, IC Certified

配件
Accessories

扩展板+线“XDK Gateway” extension board + 10cm connector cable
USB线Micro USB 2.0 connector cable
安装支架Mounting plate and screws

尺寸
Dimensions

60 W x 42.5 D x 22H mm
