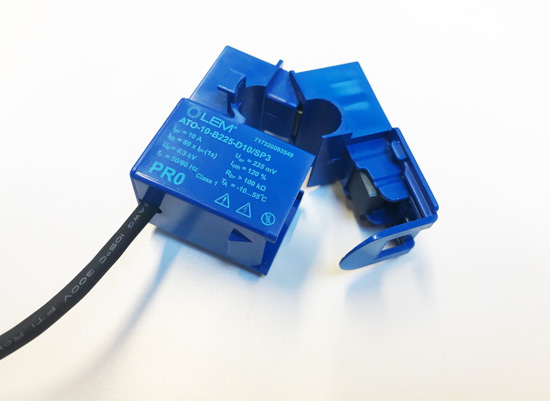

ATO series is a split core current transformer for the electronic measurement of AC waveform current with galvanic separation between the primary circuit (power) and the secondary circuit (measurement). ATO series is an ideal current transformer for new Smart-Grid applications, in which ratio error and phase displacement are fully tested with IEC 61869 standards accordance.
• 10 A ( 10 mm)
• Extended range to 120 % of nominal rating
• 225 mV mV @ IPR
• Class 1 accuracy (-10 °C to 55°C)
• 600 V reinforced PD2 OV III, IEC 61010-1
• 50/60 Hz operation
• 1 m output cable (standard)

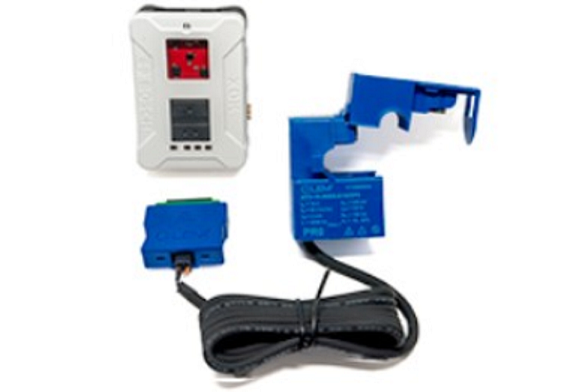

• Bosch XDK110 compatible (not supplied)
Features
● Split-core current transformer
● Rated primary current: 10 A
● Application up to 600 V CAT III PD2, basic insulation
● Accuracy class 1 (IEC 61869-2)
● Voltage output, 225 mV at IPr

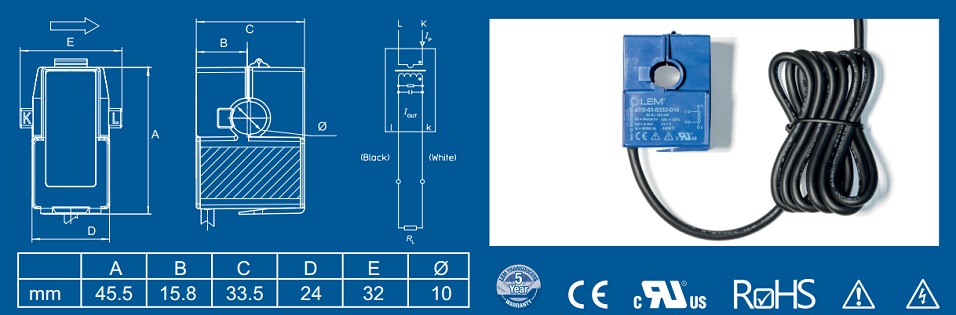

● ⌀ 10 mm sensing aperture
● 1 m output cable
● Ambient temperature -10 °C … +55 °C
● Very low cost solution
● Slot for attaching the C.T. on the primary with plastic tie
● DIN rail adapter (optional).
Special feature
● BOSCH XDK 110 compatible.
Advantages
● No interruption of electricity during installation on insulated
conductors
● Quick, non-intrusive and easy setup
● Provide a calibrate output.
Applications
● Hybrid inverter (Home Energy Storage)
● Power metering: current measurement for active power
calculation
● Building sub-metering: energy effciency monitoring,
consumption analysis and cost allocation
● Power quality monitoring: electrical loads and distribution
system equipment
● Distributed measurement systems
● Condition monitoring (e.g. Motor loads such as conveyers,
pumps).
Standards
● IEC 61010-1: 2010
● IEC 61010-031 ed1.1: 2012
● IEC 61869-1 ed1.0: 2007
● IEC 61869-2: ed1.0: 2012
● IEC 61869-6: draft 2016
● IEC 61869-10: draft 2016
● UL 508: 2013.
